LionMail Mobile and Email Client Setup

LionMail logo

LionMail is Columbia's state-of-the-art email, contacts and calendaring system, powered by Google. It provides a secure and convenient way to send and receive mail from any location using just a web browser such as Chrome, Firefox, Internet Explorer or Safari. The supported browsers are the current and the previous release of your preferred browser.

Please remember that the Gmail web interface is CUIT's only fully supported method for reading LionMail.

All Columbia University Morningside students, faculty and staff have LionMail, though some administrative departments have opted to use Outlook Exchange. CUMC students, faculty and staff use the CUMC email system. CUMC affiliates do not use LionMail.

LionMail from your iPhone browser (quick access):

You can follow the steps below to add LionMail to your iPhone, but remember that you can always access LionMail on the web from any browser, including your mobile device, without any configuration:

  1. Open the browser on your iPhone enter the following URL: lionmail.columbia.edu
  2. Log in to your LionMail account with your UNI and password

Adding LionMail as an email account on your iPhone (iOS 14.x)

Updated December 4, 2020

1. Open the Settings application on your phone's home screen.

iPhone home screen with Settings icon circled (grey gear)

2. Select Mail.

iPhone Settings screen with the Mail menu option circled, 6th option from the top

3. Select Add Account.

iPhone Mail Settings screen with the Add Account menu option circled, 4th option from the top

4. Select Google.

iPhone Add Account screen with Google logo circled (3rd option from the top)

5. A pop-up will appear: ""Settings" Wants to use "google.com" to Sign In"". Select Continue.

Pop-up with the notification reading: "Settings" Wants to use "google.com" to Sign In. Continue option is circled.

6. Type in your email address in the form UNI@columbia.edu and select Next.

Google Sign in screen with Email or phone field circled, and UNI@columbia.edu entered in the field.

7. The blue Columbia login screen will appear. Close the orange cookies disclaimer at the bottom. Enter your UNI (without @columbia.edu) and your password, and select Login.

CAS login screen with UNI and Password fields circled.

8. You will taken to the Duo multifactor authentication screen. Select your preferred authentication method and validate.

9. After validating, you will be taken to the Gmail sync screen. Deselect any options you do not wish to have synced on your iPhone and select Save.

Gmail sync screen with Save button in upper right corner circled

LionMail from your iPad browser (quick access):

You can follow the steps below to add LionMail to your iPhone Mail app, but remember that you can always access LionMail on the web from any browser, including your mobile device, without any configuration, by simply:

  1. Open the browser on your iPhone or iPad and enter the following URL: lionmail.columbia.edu
  2. Log in to your LionMail account with your UNI and password.

Adding LionMail as an email account on your iPad (iOS 10.x):

1. Open the Settings application on your tablet's home screen.

iPad home screen, Settings icon circled

2. Click on Mail in the left window and then click Add Account in the right window.

Settings pane on left, Mail button selected; Mail window on right, Add Account button selected

3. Click on the Google mail option.

Add Account screen with Google option circled

4. Type in your email address in the form uni@columbia.edu and click Next.

Gmail Sign in screen, with uni@columbia.edu entered in Email or phone field

5. Type in your UNI and UNI password and click Next.

LionMail@Columbia login screen with UNI and password entered

6. Choose the options for the applications you wish to sync and click Save.

Gmail sync screen with optional applications listed

iPads/iPhone clients can access a variety of useful settings by going to a web-based configuration screen.

  1. Make sure LionMail is set up on your iPhone.
  2. Log out of all Gmail accounts on your iPhone, including all personal Gmail accounts, YouTube, Chrome, or any other Gmail account.
  3. Use Safari on your iPhone to log into LionMail by visiting lionmail.columbia.edu.
  4. Using the same browser page, go to m.google.com/sync/settings.
  5. If you see a screen with last sync information, tap the top rectangle.
  6. From here select the device that you would like to configure.

Options Available

  • Enable “Send Mail As” for this device: this will allow you to send mail from your ActiveSync device using a Send-As address that is active in your LionMail web interface (such as your personalized email alias). This setting will supersede the email address that you use to log in to your LionMail account.
  • Enable “Delete Email as Trash” for this device: this option will move deleted messages to your trash instead of archiving the message.
  • My Calendars and Shared Calendars: these options allow you to select which calendars appear on your mobile device.
Settings

1. From the home screen, select the Google icon.

Android device home screen with Google icon circled

2. Click on Gmail.

Google screen with Gmail icon circled

3. Click GOT IT.

New in Gmail screen with GOT IT button circled

4. Click on Add an email address.

Gmail screen with Add an email address button circled

5. Click on Google option.

Set up email screen with Google option circled

6. Type in your UNI@columbia.edu and click NEXT.

Add your account screen with UNI@columbia.edu entered for Email or phone

7. Click ACCEPT on the following screen.

Disclaimer screen

8. Enter your UNI and UNI password and click LOGIN.

LionMail@Columbia page with UNI and password completed

9. Choose whether you would like to automatically backup your device data and click NEXT.

Google services screen for selecting back up preference

10. The following screen will pop up, indicating the setup is complete:

Gmail screen

1. From the Home screen, tap the Google folder

Homescreen with google folder circled

2. Click on Gmail

Gmail icon circled

3. Click GOT IT and\or SKIP

Screen with Got It button
Screen with Skip button

4. Click on Add an email address

Add an email address button circled

5. Click on Google and click NEXT

Google option selected and circled

6. Type in your UNI@columbia.edu and click NEXT

uni@columbia.edu entered into email field

7. Click ACCEPT on the following screen

Accept screen

8. Enter your UNI (without @columbia.edu) and UNI password and click LOGIN

uni and password entered into LionMail  log in

9. You may see the following screen briefly

Checking into screen

10. Turn Automatic backup on or off based on your choice and click NEXT

Google services screen

11. A final screen will pop up showing your first name, last name and email address. This indicates that the setup was successful.  Click TAKE ME TO GMAIL to view your Lionmail mailbox.

Take me to Gmail screen

The default user experience in LionMail when accessing it via ActiveSync (iPad/iPhone) or IMAP (Thunderbird, Apple Mail, Outlook or Blackberry) is different than is when you access LionMail via the Gmail web app. The following table provides a comparison of how actions in your device or software will affect your LionMail account.

**You can change how deleting messages in your IMAP client affects LionMail.

  1. Go to the Google Gear.
  2. Select Mail Settings.
  3. Click on Forwarding and POP/IMAP.
  4. Find the IMAP Access area
  5. Select Auto-Expunge off - Wait for the client to update the server.
  6. You have two options:
    • If you would like to move messages to the LionMail trash when you move a message to the trash in your IMAP client, select Move the message to the Trash.
    • If you would like to permanently delete messages in LionMail when you move a message to the trash in your IMAP client, select Immediately delete the message forever.
IMAP Access Options Display

**If you are an iPhone/iPad user, you can also choose whether to move discarded messages into Deleted Mailbox or Archive Mailbox.

  1. Open Settings on your device’s home screen.

  2. Open Mail, Contacts, Calendars.

  3. Select your IMAP Account.

  4. Open Account.

  5. Open Advanced Settings.

 You have two options:

  • If you check Deleted Mailbox, your discarded messages will be sent to the Trash folder in your LionMail and will be deleted after 30 days.
  • Checking Archive Mailbox will move your discarded messages into All Mail folder in LionMail.

LionMail setup for your non-Gmail email client

An email client is a program used to access and manage your email.
Please remember that the Gmail web interface is CUIT's only fully supported method for reading LionMail.

Before you set up your email client (required)

You will need to change two settings in LionMail's Gmail interface to allow you to use IMAP clients (like Outlook, Apple Mail, and Thunderbird) to read emails in your LionMail account. IMAP (Internet Message Access Protocol) refers to a standard email protocol that stores email messages on a mail server, but allows you to view and handle the messages as though they were stored locally on your computing device(s).

1. Log into your LionMail account in Gmail and select your account profile (circle) on the top right hand corner.

Select account profile (circle at top right corner of page). Select "Manage your Google Account".

2. Select Manage your Google Account, which will take you to a new browser window. Navigate to Security on the lefthand side.

Select "Security" on the menu on the lefthand side of the page.

3. Under the Security section, scroll to Less secure app access.

4. Make sure that the Allow less secure apps setting is ON. This step is necessary to use Apple Mail, Thunderbird, and the most recent versions of Outlook (2013 and newer) with LionMail.

Under the Security section, scroll to and select "Less secure app access".
The Allow less secure apps setting is set to ON.

5. Return to your LionMail account in Gmail. Select the gear in the upper-right corner and select Settings.

6. Select the Forwarding and POP/IMAP tab, and choose enable in the third section: IMAP Access. Select Save Changes at the bottom.

Forwarding and POP/IMAP tab of Settings in LionMail's Gmail interface

7. Now you are ready to set up your email client. Choose your client from the list below for step-by-step instructions.

Select your email client

1. Open the Apple Mail application, choose Google and click Continue

Choose a Mail account provider window with Google option circled

2. Type in UNI@columbia.edu and click Next

uni@columbia.edu entered in enter your email field

3. Type in your UNI and Password when prompted, and click Login

UNI and password fields completed in the LionMail at Columbia portal

4. Choose the Mac apps that would like to use with your Lionmail account

Window with apps options to select based on your preferences

1. You must create a device password to allow Outlook to access LionMail.

Your device password is randomly generated and is not retrievable. If you lose your device password you will need to set a new device password and reconfigure all of your devices to use the new password. The same device password must be used on all of your devices and email clients.

Setting (or resetting) your device password

  • Log in to the LionMail Device Password portal with your UNI and password.
  • On the next screen, click on the Create button.
  • On the following screen you will be given your device password. Please remember that it is case sensitive.

2. After you have set your LionMail device password and updated your LionMail account settings, open Microsoft Outlook 2019 and click on File in the menu. Next, select Info and click Add Account.

Under Account Information, Add Account

3. Enter your Columbia LionMail email address (UNI@columbia.edu) and select Advanced Options. Next, check the box that says Let me set up my account manually.

Enter your UNI@columbia.edu and check the manual set-up box

4. For the account type, select IMAP.

Select IMAP as your account type

5. Make sure the IMAP Account Settings match the below (some of the auto-filled information may not be correct), then select Next.

Incoming mail
Server: imap.gmail.com
Port: 993
Encryption method: SSL/TLS

Outgoing mail:
Server: smtp.gmail.com
Port: 465
Encryption method: SSL/TLS

IMAP Account Setting info for LionMail

6. Enter your device password (NOTE: this is not your UNI password) and select Connect.

Enter your device password in the password field (not your UNI password)

1. After you have updated your LionMail account settings, open Outlook 2019 for Mac and click on Preferences from the Outlook menu.

Select Preferences in the Outlook menu in the toolbar

2. Under Personal Settings, select Accounts.

Select the Accounts icon under Personal Settings (top row)

3. Select Add Email Account (or click on the + in the lower left corner).

Select Add Email Account button in Accounts pop-up

4. Enter your Columbia LionMail email address (UNI@columbia.edu) and click Continue.

Enter your Columbia UNI@columbia.edu email address in the Set Up Your Email window

5. In the Set Up Your Email window, select the Not IMAP/POP? link in the top right corner.

6. For the provider, select Gmail.

In the Set Up Your Email window, choose Gmail as the provider for your UNI@columbia.edu

7. Your default web browser will now open. Enter your Columbia LionMail email address (UNI@columbia.edu) and select Next. Then, log in with your UNI and UNI password.

Enter your UNI@columbia.edu  email address in the Sign in with Google window of your default browswer

8. When prompted with Microsoft apps & services wants to access your Google Account, select Allow.

Select "Allow" button when asked if Microsoft apps & services can access your Google Account in the Sign in with Google window

1. You must create a device password to allow Outlook to access LionMail.

Your device password is randomly generated and is not retrievable. If you lose your device password you will need to set a new device password and reconfigure all of your devices to use the new password. The same device password must be used on all of your devices and email clients.

Setting (or resetting) your device password

  • Log in to the LionMail Device Password portal with your UNI and password.
  • On the next screen, click on the Create button.
  • On the following screen you will be given your device password. Please remember that it is case sensitive.

2. After you have set your LionMail device password and updated your LionMail account settings, open Microsoft Outlook, click on File in the menu. Next, select Info and click Add Account.

Account Information window

3. Click on Manual setup or additional server types (bottom left) and click Next.

Add Account window, arrow pointing to Manual setup or additional server types option at bottom left

4. Choose POP or IMAP and click Next.

Choose Service window, POP or IMAP option circled

5. Add the following information and then click More Settings.

  • Your Name - Your Full Name
  • Email Address - UNI@columbia.edu
  • Account Type - IMAP
  • Incoming Mail Server - imap.gmail.com
  • Outgoing Mail Server - smtp.gmail.com
  • PasswordDevice Password (Note: this is not your UNI password)
POP and IMAP Account Settings window with information from step 4 completed

6. Click on Outgoing Server tab and check off My outgoing server (SMTP) requires authentication and select the Use same settings as my incoming mail server option. Click OK.

Internet E-mail Settings window, Outgoing Server tab, with information from Step 5 completed

7. Click on the Advanced tab and change the following settings and click OK

  • Incoming server (IMAP) - 993
  • Use the following type of encrypted connection - SSL
  • Outgoing server (SMTP) - 465
  • Use the following type of encrypted connection - Auto
Internet E-mail Settings window, Advanced tab, with information from Step 6 completed

8. When configured correctly, you should see a window that says, "Congratulations. All tests completed successfully. Click Close to continue."

Test Account Settings window with checkmarks next to Completed tasks

1. You must create a device password to allow Outlook to access LionMail.

Your device password is randomly generated and is not retrievable. If you lose your device password you will need to set a new device password and reconfigure all of your devices to use the new password. The same device password must be used on all of your devices and email clients.

Setting (or resetting) your device password

  • Log in to the LionMail Device Password portal with your UNI and password.
  • On the next screen, click on the Create button.
  • On the following screen you will be given your device password. Please remember that it is case sensitive.

2. After you have set your LionMail device password and updated your LionMail account settings, open Outlook 2016 for Mac and choose Preferences from the Outlook menu.

Outook menu with Preferences button selected

3. Click Accounts

Accounts icon circled

4. Choose Other Email

Other Email option circled

5. Type in your UNI@columbia.edu, Device Password (Note: this is not your UNI password), UNI@columbia.edu again, IMAP, imap.gmail.com, smtp.gmail.com and place a checkmark in both of the boxes labeled "Use SSL to connect.". Finish setup by clicking Add Account.

Enter your account information screen with fields completed

Last updated: January 2021

Note: By using OAuth2 authentication, you do not need to use a device password. This has been tested in Thunderbird version 78.6.0.

Some of these steps may differ from what you experience if you are using an older version of Thunderbird. You can download the latest version on Mozilla's site.

1. Open Thunderbird and click on the three horizontal lines in the upper-right corner.



Image of the upper-right corner of the Thunderbird interface, with the Menu button (three horizontal lines) circled for emphasis

2. Select New, then select Existing Mail Account.

Image of Thunderbird menu interface with "New" menu item circled (top item on the menu)
Image of sub-menu under "New" with "Existing Mail Account" circled

3. Type in your full name, email address (your UNI@columbia.edu), and your UNI password. Select Continue.

4. Your information should be auto-filled partially from the previous step. If not:

  • Enter your full name in the Your name box.
  • Enter your UNI@columbia.edu in the  Email address box.
  • Enter your UNI password in the Password box.

Some or all of these fields will need to be reconfigured to match the following:

  • Incoming
    • Protocol - IMAP
    • Server hostname - imap.gmail.com
    • Port - 993
    • SSL - SSL/TLS
    • Authentication - OAuth2
    • Username - Your UNI@columbia.edu
  • Outgoing
    • Protocol - SMTP
    • Server hostname - smtp.gmail.com
    • Port - 587
    • SSL - STARTTLS
    • Authentication - OAuth2
    • Username - Your UNI@columbia.edu

Click on Re-test. Some options may not appear until you click on Re-test. You may need to enter what you can, then click on Re-test again, and then confirm and update all of the fields.

Click Done.

Set Up Your Existing Email Address window with fields completed as detailed in step 4

Last updated: January 2021

Note: By using OAuth2 authentication, you do not need to use a device password. This has been tested in Thunderbird version 78.4.0.

Some of these steps may differ from what you experience if you are using an older version of Thunderbird. You can download the latest version on Mozilla's site.

1. Open Thunderbird and click on File in the menu. Select New, then choose Existing Mail Account.

2. Type in your full name, your UNI@columbia.edu email address, and your UNI password. Click Continue

3. Your information should be auto-filled partially from the previous step. If not:

  • Enter your full name in the Your name box.
  • Enter your UNI@columbia.edu in the  Email address box.
  • Enter your UNI password in the Password box.

Some or all of these fields will need to be reconfigured to match the following:

  • Incoming Server:  IMAP
  • Server Hostname: imap.gmail.com
  • Port: 993
  • SSL: SSL/TLS
  • Authentication: OAuth2
  • Outgoing Server:  SMTP
  • Server Hostname: smtp.gmail.com
  • Port: 587
  • SSL: STARTTLS
  • Authentication: OAuth2
  • Username: UNI@columbia.edu

Click on Re-test.  Some options may not appear until you click on Re-test. You may need to enter what you can, then click on Re-test again, and then confirm and update all of the fields.

Click on Create Account.

When it succeeds, click Done.

Set Up Your Existing Email Address window with the fields filled out as detailed in Step 3

After your set up your email client

LionMail can be configured to allow unlimited messages, which works well in the Gamil web interface, but can create syncing delays if you use an email client. This can be reduced by setting the folder limit size to a suggested limit of less than 1,000 messages.

How to set folder size limits:

  1. Log into your LionMail account in the Gmail web interface.

  2. Click the gear in the upper-right corner and select Settings.

  3. Select the Forwarding and POP/IMAP tab at the top.

  4. In the IMAP Access section, under Folder Size Limits make sure Limit IMAP folders to contain no more than this many messages is selected, then choose the preferred limit from the drop-down menu.

We suggest hiding certain folders to prevent your device from syncing GBs of mail.

  1. Log into your LionMail account in the Gmail web interface.

  2. Click the gear in the upper-right corner and select Settings.

  3. Select the Labels tab at the top.

  4. Make sure Show in IMAP is not checked for any folder or label you want to hide from your device or email client mailbox. Since archiving a message in your email client moves it to All Mail in LionMail, we suggest that you hide (uncheck) All Mail.

Settings section of Gmail web interface

All Google accounts, including LionMail, have a limited amount of bandwidth, and this extends to bandwidth used for account synchronization. If you exceed the bandwidth limit, your account may be temporarily suspended. In this case, you can still log into your LionMail account with the Gmail web interface.

Google provides specific information on the bandwidth limits as well as recommendations to avoid reaching the bandwidth limit for syncing.

The default user experience in LionMail when accessing it via ActiveSync (iPad/iPhone) or IMAP (Thunderbird, Apple Mail, Outlook or Blackberry) is different than is when you access LionMail via the Gmail web app. We have created a table comparing how actions in your device or software will affect your LionMail account.

Configure your email client to offer UNIs and names from the Columbia directory by adding LDAP (Lightweight Directory Access Protocol).

Please note that Columbia LDAP is not available for Apple Mail. If you prefer to use an email client on your macOS computer, CUIT recommends that you use Mozilla Thunderbird.

1. Open Outlook and select File from the banner menu. Click on the Account Settings drop-down box and select Account Settings.

View of Outlook banner menu with File option circled in orange
View of Outlook Account Information page with Account Settings icon circled

2. Click on the Address Books tab, then select New.

Image of Account Setting field with Address Books tab selected and circled in orange. New is also circled in orange.

3. Click on the radio button for Internet Directory Service (LDAP), then select Change and Close (in older versions of Outlook, click Next, as shown below).

Add Account window with Internet Directory Service (LDP) circled in orange

4. Enter ldap.columbia.edu as the Server Name, then check the box in front of This server requires me to log on and enter the following UNI login credentials:

  • User Name: uni=your UNI,ou=People,o=Columbia University,c=US
    • For example, if your UNI is ab1234, enter: uni=ab1234,ou=People,o=Columbia University,c=US
  • Password: your UNI password
    • ​​​​​​​Enter the password you use to log in to your Columbia email, SSOL, My.Columbia, PAC, etc.
Change Account window with Directory Service (LDAP) Settings displayed. Orange circles surround ldap.columbia.edu as the Server Name, the checkbox in front of This server requires me to log on and the User Name and Password fields

5. Choose More Settings ... (You might receive a popup message stating that you must restart Outlook for these changes to take effect). Click OK to close the pop-up.

Under the Connection tab, enter Columbia Directory for the Display Name. Change the Port: to 636, and check the Use Secure Sockets Layer box.

Select Apply.



Connection tab of Microsoft LDAP Directory window. Columbia Directory is circled in the Display Name Field, 636 is circled in the Port field, the checkbox is circled for Use Secure Sockets Layer. Apply is circled.

6. Select the Search tab.

Under Server Settings, enter:

  • Search timeout in seconds: 60
  • Specify the maximum number of entries you want to return after a successful search: 100

Under Search Base, enter the following in the Custom: box:

ou=People,o=Columbia University,c=US

Click Apply and then OK.

Search tab of Microsoft LDAP Directory window. Circles surround 60 in the Search timeout field, 100 in the maximum number of entries field, and ou=People,o=Columbia University,c=US in the Custom field. Apply and OK are also circled.

7. Click Next.

Change Account window with Next button circled

8. Click Finish and restart Outlook.

Change Account window with Finish button circled

1. Open Thunderbird and click on the three horizontal lines in the upper-right corner.

Image of the upper-right corner of the Thunderbird interface, with the Menu button (three horizontal lines) circled for emphasis

2. From the menu, select Tools. Then select Address Book.

Thunderbird menu extended with "Tools" option circled
Tools menu with "Address Book" option circled (top of the menu)

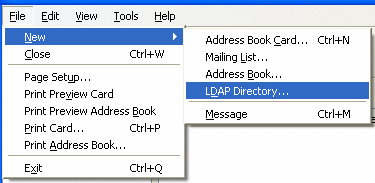

3. From the Address Book, select File, choose New, and then choose LDAP Directory.

Address Book view with File menu extended (circled), New option selected (circled), and LDAP Directory option selected (circled)

4. With the General tab selected, input the following:

  • Name: Columbia Directory
  • Hostname: ldap.columbia.edu
  • Base DN: ou=People,o=Columbia University,c=US
  • Port number: 636
  • Check the box for "Use secure connection (SSL)

Do not click OK yet.

Image of the General tab (circled) in the New LDAP Directory window. The Name, Hostname, Base DN, Port Number and Use secure connection (SSL) fields are circled.

5. Select the Advanced tab and input the following:

  • Scope: Select Subtree
  • Login method: Select Simple

Click OK.

Image of the General tab (circled) in the New LDAP Directory window. The Scope and Login method fields are circled,as well as OK.

6. Quit and re-start Thunderbird. The Columbia Directory will now be listed along with your personal address books.

If you want Thunderbird to look up email addresses in the Columbia Directory when you begin typing an address into the To: field of a new message:

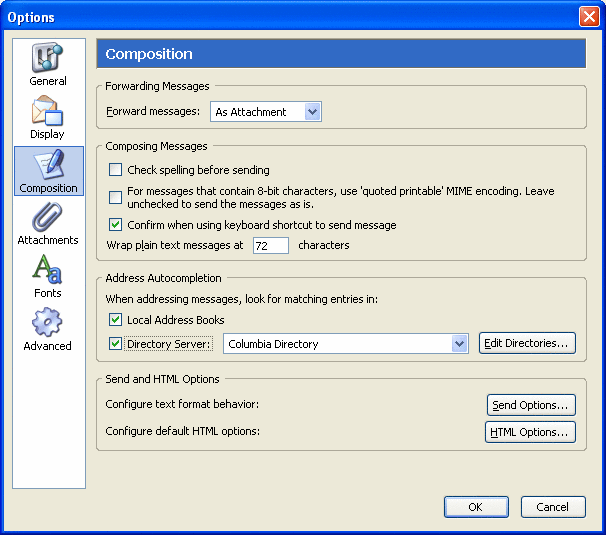

1. Select Options from the Tools menu. (Note: On the Macintosh, choose Preferences from the Thunderbird menu.)
2. Select Composition. Check the Directory Server option in the Addressing section and select Columbia Directory from the drop-down menu. Click OK.



Options window with Composition tab circled, and Directory Server section (under Addressing) circled
